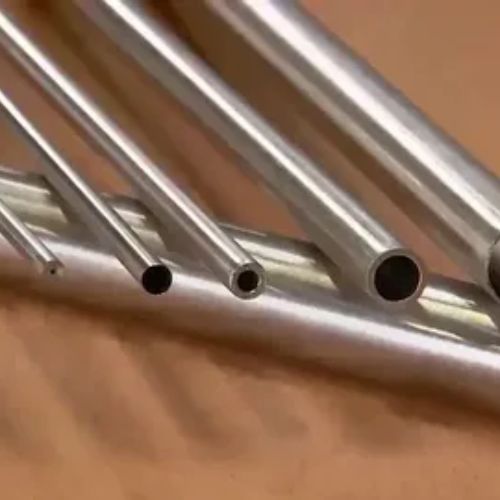

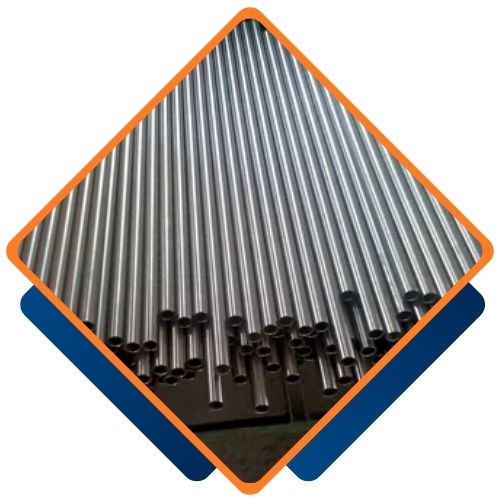

Bereket Pipes, located in Addis Ababa, Ethiopia, stands out as a top manufacturer and supplier of Titanium Grade 5 Tubing. This tubing is celebrated for its remarkable strength, resistance to corrosion, and high-quality craftsmanship. The company specializes in precision-engineered tubing solutions that adhere to international standards, guaranteeing dependable performance in tough industrial, aerospace, marine, and chemical settings. Bereket Pipes’ Titanium Grade 5 Tubing is specifically crafted for high-pressure and high-temperature conditions, ensuring it remains durable and efficient while being lightweight—showcasing the company’s dedication to providing top-notch, high-performance products.
This Titanium Grade 5 Tubing is made up of about 90% titanium, 6% aluminum, and 4% vanadium, striking the perfect balance between strength, corrosion resistance, and heat tolerance. It boasts a tensile strength of roughly 895 MPa and a yield strength of around 828 MPa, along with impressive ductility, toughness, and resistance to fatigue. The alloy is also known for its excellent weldability, formability, and stability at elevated temperatures, making it a go-to choice for critical engineering applications where reliability and high mechanical performance are a must.
Specification : ASTM B861, B338, B388, B862 / ASME SB861, SB338, SB388, SB862
Pipe Range : ½”NB to 24”NB / SCH 10 – SCH XXS
Tubes Range: 1mm OD to 254mm OD / Thickness 0.1 to 20mm.
Type : Seamless / ERW / Welded / Fabricated Pipes
Form : Round, Square, Rectangular, Oval, Hydraulic Etc
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Inspection, Test Reports : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports
Packing : Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Specials : Sizes and Specifications other than above can be manufactured on request
| Al | Fe | O | Ti | V |
|---|---|---|---|---|
| max | max | max | max | max |
| 6 | 0.25 | 0.2 | 90 | 4 |
| Hardness, Brinell | 334 | 334 | Estimated from Rockwell C. |
|---|---|---|---|
| Hardness, Knoop | 363 | 363 | Estimated from Rockwell C. |
| Hardness, Rockwell C | 36 | 36 | |
| Hardness, Vickers | 349 | 349 | Estimated from Rockwell C. |
| Tensile Strength, Ultimate | 950 MPa | 138000 psi | |
| Tensile Strength, Yield | 880 MPa | 128000 psi | |
| Elongation at Break | 14 % | 14 % | |
| Reduction of Area | 36 % | 36 % | |
| Modulus of Elasticity | 113.8 GPa | 16500 ksi | |
| Compressive Yield Strength | 970 MPa | 141000 psi | |
| Notched Tensile Strength | 1450 MPa | 210000 psi | Kt (stress concentration factor) = 6.7 |
| Ultimate Bearing Strength | 1860 MPa | 270000 psi | e/D = 2 |
| Bearing Yield Strength | 1480 MPa | 215000 psi | e/D = 2 |
| Poisson’s Ratio | 0.342 | 0.342 | |
| Charpy Impact | 17 J | 12.5 ft-lb | V-notch |
| Fatigue Strength | 240 MPa | 34800 psi | at 1E+7 cycles. Kt (stress concentration factor) = 3.3 |
| Fatigue Strength | 510 MPa | 74000 psi | Unnotched 10,000,000 Cycles |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
By choosing Titanium Gr 5 Tubing from Bereket Pipes and Tubes, you are assured of superior quality and durability. These tubes provide outstanding corrosion resistance and strength, making them ideal for a wide range of industrial applications. Our dedication to excellent service and dependable delivery ensures customer satisfaction every time. With our expertise in stainless steel products, we deliver top-tier solutions customized to meet your specific requirements.
Bereket Pipes and Tubes, a leading supplier of Titanium Gr 5 Tubing in Addis Ababa, Ethiopia, provides a wide selection of premium pipes and tubes for diverse industrial applications. With a vast inventory and a strong focus on delivering outstanding service, they are the preferred choice for stainless steel products in the region.
At Bereket Pipes and Tubes, we provide custom sizes of Titanium Gr 5 Tubing to meet your exact specifications. Our dedicated team is here to offer tailored solutions for all your piping and tubing needs. For more information, feel free to reach out to us at sales@brydonpipesandtubes.co.uk.
You’ll find Titanium Grade 5 Tubing widely utilized across aerospace, marine, chemical processing, and power generation industries. It’s perfect for hydraulic systems, heat exchangers, condensers, piping systems, and offshore equipment that face harsh chemical and corrosive environments. Moreover, it’s also used in medical devices, automotive parts, and high-performance industrial systems where strength, durability, and lightweight characteristics are essential. With Titanium Grade 5 Tubing, you can count on a long service life and dependable performance, even in high-pressure and corrosive situations.
