Home > Stainless Steel > Stainless Steel 317 Tubing
Stainless Steel 317 Tubing is an austenitic chromium-nickel-molybdenum stainless steel alloy that boasts a higher molybdenum content (3–4%) compared to the 316 grade. Its typical composition includes 18–20% chromium, 11–15% nickel, and 0.08% carbon, which enhances its resistance to pitting and crevice corrosion. This material showcases impressive mechanical properties, with a tensile strength of around 515 MPa and a yield strength close to 205 MPa. It also offers excellent creep resistance, good formability, and durability even at high temperatures, making it perfect for demanding industrial applications.
Stainless Steel 317 Tubing is a molybdenum-containing austenitic stainless steel alloy containing 18–20% chromium, 11–15% nickel, and 3–4% molybdenum. The higher content of molybdenum offers improved resistance to pitting, crevice corrosion, and general corrosion, particularly in acidic and chloride-containing environments. The tubing possesses tensile strength ranging from 515–760 MPa and yield strength of around 205 MPa. It also possesses good mechanical properties at higher temperatures and is ideal for forming, welding, and fabricating under harsh service conditions.
| Tube Standard | ASTM A213, A269, A249, A511, A554 / ASME SA213, SA269, SA249, SA511, SA554 |
| Tube Dimension | ANSI/ASME B36.19M, ANSI/ASME B36.10M |
| Seamless Tube Sizes | 1 / 2″ NB – 16″ NB |
| Welded Tube Sizes | 1 / 2″ NB – 24″ NB |
| Tube Outside Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock |
| Tube Manufacturing Process | Seamless / Welded / ERW / Fabricated / CDW / 100% X Ray Welded |
| Stainless Steel Tube Schedule | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Tube Length | Single Random, Double Random, Standard & Cut length |
| Tube End Types | Plain Ends (PE), Threaded Ends (TE), Bevelled Ends (BW), Grooved Mechanical Joints or Grooved Ends, TBE (Treaded Both Ends) |
| Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Outside Finish | 2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Tubes, Finish as per customer Requirements |
| Value Added Services | Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 317 | 1.4449 | S31700 | SUS 317 | – | – | – | – |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 317 | min. | – | – | – | – | – | 18.0 | 3.0-4.0 | 11.0 | – |
| max. | 0.08 | 2.0 | 1.0 | 0.040 | 0.030 | 20.0 | 14.0 | – | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 317 | 515 | 205 | 35 | 75 | 205 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 317 Tubing from Bereket Pipes and Tubes ensures high quality and durability, as these tubing offer excellent corrosion resistance and strength. Our commitment to exceptional service and reliable delivery guarantees customer satisfaction across various industrial applications. Our expertise in stainless steel products ensures you receive a top-tier solution tailored to your needs.
Bereket Pipes and Tubes, one of the largest suppliers of Stainless Steel 317 Tubing in Addis Ababa, Ethiopia, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.

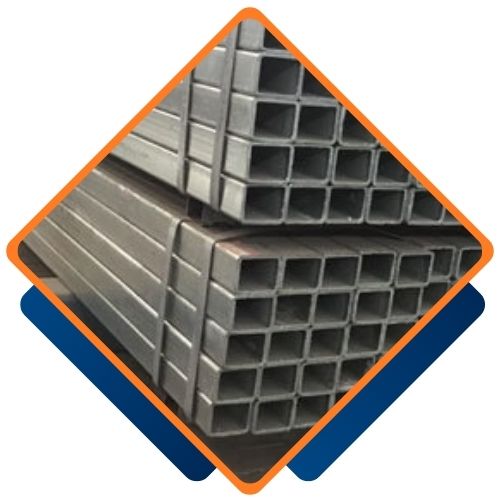

| Dimensions | Wall | Weight per | Dimensions | Wall | Weight per | |
|---|---|---|---|---|---|---|
| (mm) | (mm) | metre (kg) | (mm) | (mm) | metre (kg) | |
| 12.7 x 12.7 | 1.20 | 0.44 | 40 x40 | 1.20 | 1.49 | |
| 12.7 x 12.7 | 1.50 | 0.55 | 40 x40 | 1.50 | 1.85 | |
| 15 x 15 | 1.20 | 0.53 | 40 x40 | 2.00 | 2.45 | |
| 15 x 15 | 1.50 | 0.65 | 40 x40 | 3.00 | 3.75 | |
| 20 x 20 | 1.20 | 0.71 | 50 x50 | 1.50 | 2.32 | |
| 20 x 20 | 1.50 | 0.88 | 50 x50 | 2.00 | 3.08 | |
| 20 x 20 | 2.00 | 1.19 | 50 x50 | 3.00 | 4.65 | |
| 25 x 25 | 1.20 | 0.92 | 60 x60 | 2.00 | 3.71 | |
| 25 x 25 | 1.50 | 1.14 | 60 x60 | 3.00 | 5.49 | |
| 25 x 25 | 2.00 | 1.49 | 70 x70 | 3.00 | 6.53 | |
| 25 x 25 | 3.00 | 2.20 | 80 x80 | 2.00 | 4.98 | |
| 30 x 30 | 1.20 | 1.10 | 80 x80 | 3.00 | 7.53 | |
| 30 x 30 | 1.50 | 1.37 | 100 x 100 | 2.00 | 6.40 | |
| 30 x 30 | 2.00 | 1.84 | 100 x 100 | 3.00 | 9.53 | |
| 30 x 30 | 3.00 | 2.72 | ||||
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 317 | 8000 | 193 | 15.9 | 16.2 | 17.0 | 14.2 | 18.7 | 500 | 740 |
|
OD Size
Inches |
Tolerances, Inches |
||
|
OD,
Inches |
Wall |
Cut
Length (a), In. |
|
|
Less than 1 |
±0.004 |
All Sizes
± 10% |
+1/8–0 |
|
1 to 1-1/2 |
±0.006 |
||
|
Over 1-1/2 to 2 |
±0.008 |
||
|
Over 2 to 2-1/2 |
±0.010 |
+3/16–0 |
|
|
Over 2-1/2 to 3 |
±0.012 |
||
|
Over 3 to 4 |
±0.015 |
||
|
Over 4 to 5 |
+0.015
– 0.025 |
||
Yes, we offer custom sizes for Stainless Steel 317 Tubing to meet your specific requirements. Our team at Bereket Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@bereketpipes.com.

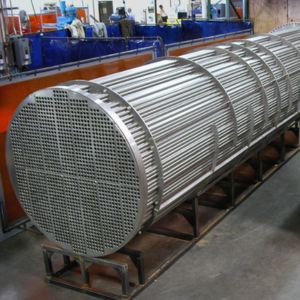

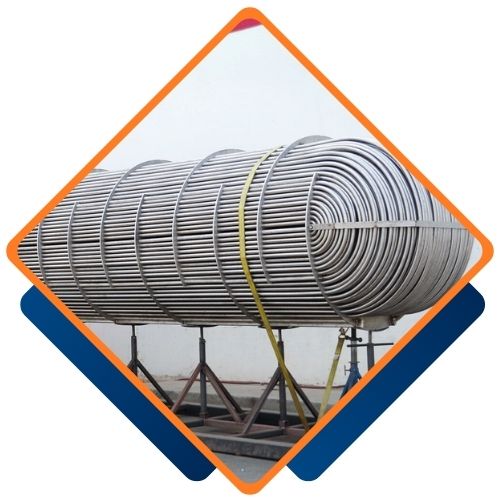

Stainless Steel 317 Tubing is extensively utilized in situations that require exceptional corrosion resistance and strength. It’s particularly well-suited for the chemical and petrochemical industries, where it handles acids, solvents, and chlorides with ease. Additionally, it’s employed in pulp and paper processing, textile machinery, food processing systems, and marine settings. Its resistance to oxidation and scaling also makes it ideal for heat exchangers, condensers, evaporators, and pharmaceutical production systems. This tubing ensures reliable performance, a longer service life, and less maintenance in corrosive and high-temperature environments.
