Home > Stainless Steel > Stainless Steel 316Ti Welded Tubing
Bereket Pipes, a reputable manufacturer and supplier located in Addis Ababa, Ethiopia, specializes in high-quality Stainless Steel 316Ti Welded Tubing, crafted for outstanding corrosion resistance and durability in high-temperature settings. Utilizing cutting-edge welding technology, these tubes boast remarkable strength, precision, and a smooth surface finish. The addition of titanium in Stainless Steel 316Ti significantly improves its resistance to sensitization and intergranular corrosion, ensuring it performs reliably over time. You’ll find Bereket Pipes’ Stainless Steel 316Ti Welded Tubing in various industries, including chemical processing, pharmaceuticals, marine applications, and food processing, where dependability, heat resistance, and hygiene are crucial for challenging operational conditions.
This Stainless Steel 316Ti Welded Tubing is made up of 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and a touch of titanium (0.5%), which helps stabilize the structure against carbide precipitation. This alloy is known for its excellent resistance to oxidation and corrosion, particularly in chloride and acidic environments. It has a tensile strength of around 515 MPa, a yield strength of 205 MPa, and an elongation of 35–40%. The material is not only highly weldable but also tough and strong against creep, maintaining its mechanical integrity even under high temperatures.
Tube Range : 6.35 mm OD To 101.6 mm OD Guage: 25 SWG – 10 SWG
Outer Diameter : 3.00 mm – 219.10 mm
Wall Thickness : 0.40 mm – 12.70 mm
Schedules : 5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH
Length : Upto 30 meters, Custom Cut Lengths
Specifications : ASTM A269 / ASTM SA269

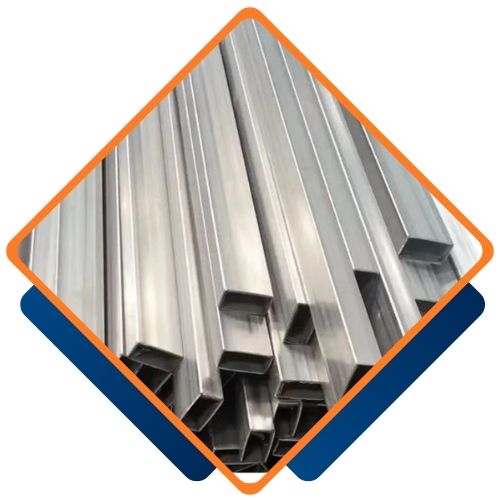

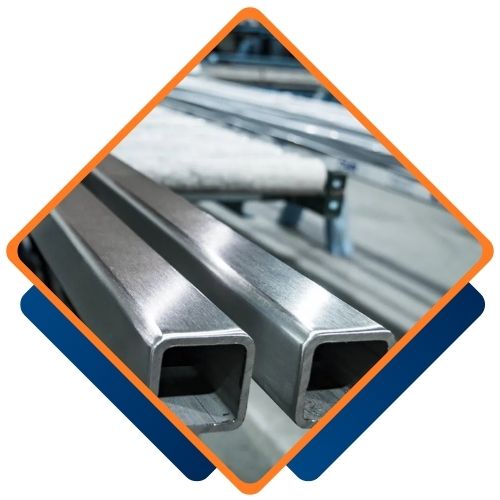

Types : Round, Square, Rectangle, Coil, “U” Shape, Hydraulic & Honed Tubes
| SS | 316TI |
| Ni | 10 – 14 |
| N | 0.10 max |
| Cr | 16 – 18 |
| C | 0.08 max |
| Si | 0.75 max |
| Mn | 2 max |
| P | 0.045 max |
| S | 0.030 max |
| Mo | 2.00 – 3.00 |
| Grade | 316TI |
| Tensile Strength (MPa) min | 515 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 35 |
| Hardness | |
| Rockwell B (HR B) max | 75 |
| Brinell (HB) max | 205 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Stainless Steel 316Ti Welded Tubing from Bereket Pipes and Tubes for exceptional corrosion resistance, superior strength and excellent durability. Ideal for a variety of industrial applications it provides outstanding performance in harsh environments. With precision manufacturing and quality assurance, we ensure reliable and durable tubing solutions.
Bereket Pipes and Tubes is the largest supplier of Stainless Steel 316Ti Welded Tubing in Addis Ababa, Ethiopia. Known for its high-quality products. We offer superior corrosion resistance, strength, and durability. Trusted by industries worldwide they provide reliable precision-engineered tubing for various applications and project needs.
| STANDARD | UNS | WERKSTOFF NR. | JIS | AFNOR | BS | GOST | EN |
| SS 316TI | S31635 | 1.4571 | SUS 316TI | Z6CNDT17‐12 | 320S31 | 08Ch17N13M2T | X6CrNiMoTi17-12-2 |
Yes, Bereket Pipes and Tubes offer large custom designs for Stainless Steel 316Ti Welded Tubing. With design, wall thickness and length. Their adjustable options ensure the tubing meets specific application requirements. This flexibility makes it more efficient and reliable for different industries and environments. For more details, contact us at sales@bereketpipes.com.
| Specific Heat (0-100°C) | Thermal Conductivity | Thermal Expansion | Modulus Elasticity | Electrical Resistivity | Density |
| 500 | 14.6 | 16.5 | 193 | 7.4 | 7.99 |
| J.kg-1.°K-1 | W.m -1.°K-1 | mm/m/°C | GPa | μohm/cm | g/cm3 |

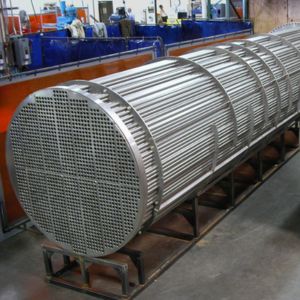

Stainless Steel 316Ti Welded Tubing is extensively utilized in sectors that demand high corrosion and heat resistance. It’s perfect for chemical and petrochemical processing, pharmaceutical production, and food and beverage systems due to its non-reactive and hygienic nature. This tubing is also employed in marine settings, heat exchangers, and exhaust systems, where durability and temperature stability are vital. Plus, its excellent weldability and resistance to intergranular corrosion make it a great choice for high-pressure piping, condensers, and structural applications in tough industrial and environmental conditions.
