Home > Stainless Steel >Stainless Steel 316Ti EFW Pipes

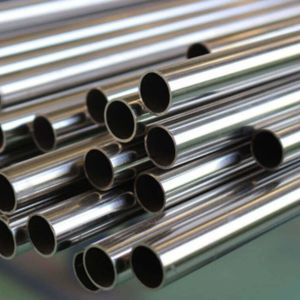

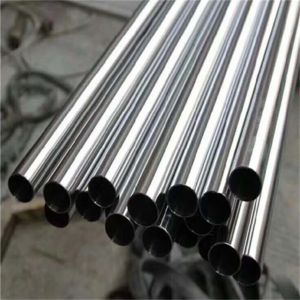

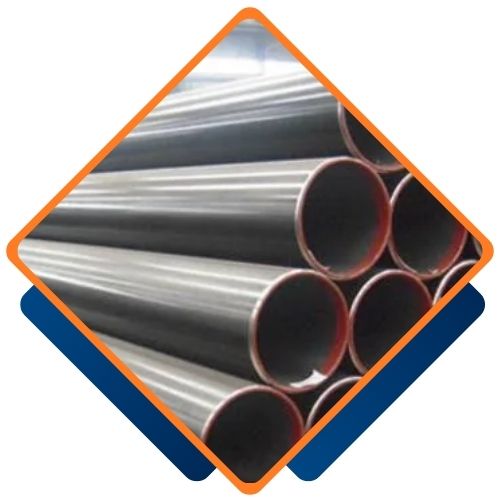

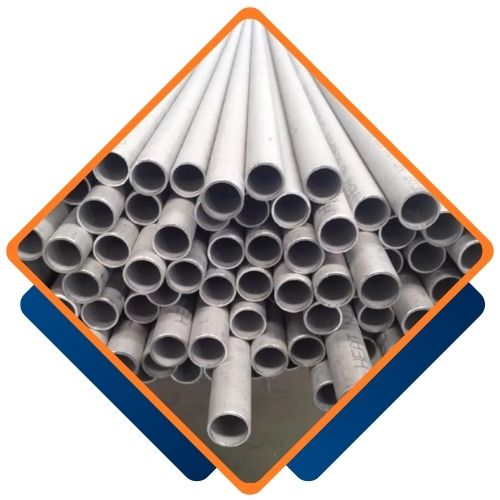

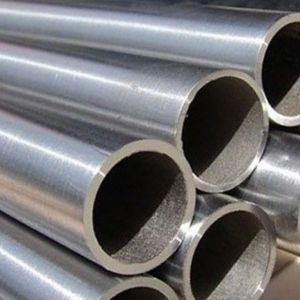

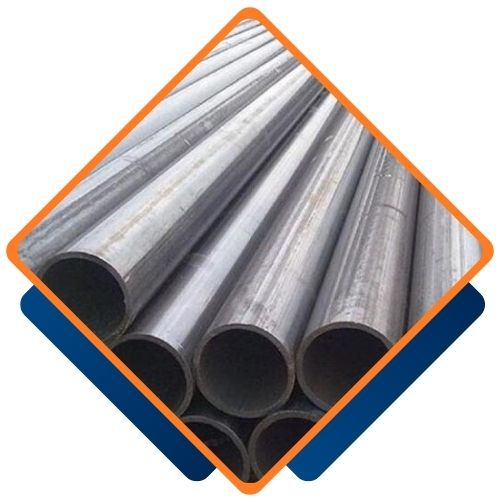

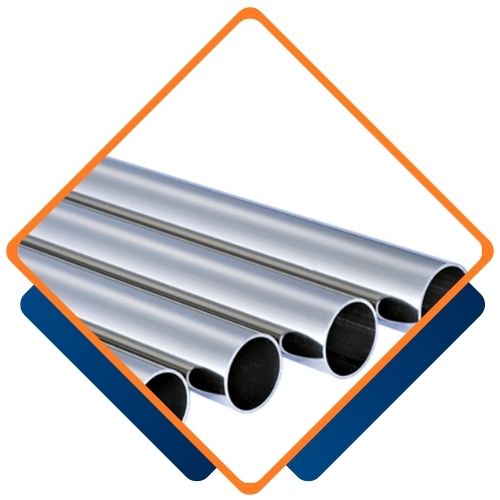

Bereket Pipes, located in Addis Ababa, Ethiopia, stands out as a top manufacturer and supplier of Stainless Steel 316Ti EFW Pipes. These pipes are well-known for their impressive corrosion resistance, ability to withstand high temperatures, and overall durability. The company specializes in crafting precision-engineered Electric-Fusion-Welded (EFW) piping solutions that adhere to international standards, guaranteeing reliable performance across various sectors, including chemical, petrochemical, and industrial applications. Bereket’s Stainless Steel 316Ti EFW Pipes are built for long-lasting service in harsh environments, showcasing exceptional mechanical strength, resistance to intergranular corrosion, and low maintenance needs—demonstrating the company’s dedication to quality and reliability.
The composition of Stainless Steel 316Ti EFW Pipes includes iron, with 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and about 0.5% titanium, which helps stabilize the alloy against carbide precipitation. These pipes boast a tensile strength ranging from approximately 515–690 MPa and a yield strength of around 205–275 MPa, along with excellent ductility and toughness. The addition of titanium enhances their resistance to intergranular corrosion during welding or high-temperature use, making them particularly well-suited for welded applications in challenging chemical and thermal settings.
| Specification | ASTM A358 / ASME SA358 |
| Specification | A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5 |
| Grades | 304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC. |
| Type | EFW, ELECTRIC FUSION WELDED |
| Outer Diameter Size | Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size) |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| SS 316Ti | S31635 | 1.4571 | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 | SUS 316Ti | 320S31 | 08Ch17N13M2 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316Ti | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Grade | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| SS 316Ti | Psi – 75000, MPa – 515 | Psi – 30000, MPa – 205 | 35 % | 75 | 205 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 316Ti EFW Pipes from Bereket Pipes and Tubes guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.
| NPS Designator | Outside Diameter | Nominal Wall Thickness | ||||||||
| in. | mm | Schedule 5SA | Schedule 10SA | Schedule 40SA | Schedule 80SA | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 8 | 8.625 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.500 | 12.70 |
| 10 | 10.750 | 273.05 | 0.134 | 3.40 | 0.165 | 4.19 | 0.365 | 9.27 | 0.500B | 12.70B |
| 12 | 12.750 | 323.85 | 0.156 | 3.96 | 0.180 | 4.57 | 0.375B | 9.52B | 0.500B | 12.70B |
| 14 | 14.000 | 355.60 | 0.156 | 3.96 | 0.188B | 4.78B | … | … | … | … |
| 16 | 16.000 | 406.40 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 18 | 18.000 | 457.20 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 20 | 20.000 | 508.00 | 0.188 | 4.78 | 0.188B | 4.78B | … | … | … | … |
| 22 | 22.000 | 558.80 | 0.188 | 4.78 | 0.218B | 5.54B | … | … | … | … |
| 24 | 24.000 | 609.60 | 0.218 | 5.54 | 0.250 | 6.35 | … | … | … | … |
| 30 | 30.000 | 762.00 | 0.250 | 6.35 | 0.312 | 7.92 | … | … | … | … |
| Grade | Density(kg/m3) | Elastic Modulus (GPa) | Mean Co-eff of Thermal Expansion (µm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100 °C (J/kg.K) | Elec Resistivity (nΩ.m) | |||
|---|---|---|---|---|---|---|---|---|---|
| 0-100 °C | 0-315 °C | 0-538 °C | At 100 °C | At 500 °C | |||||
| 316Ti | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |
We offer custom sizes for Stainless Steel 316Ti EFW Pipes to meet your specific needs. Our dedicated team at Bereket Pipes and Tubes provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@bereketpipes.com.
You’ll find Stainless Steel 316Ti EFW Pipes commonly used in chemical processing, petrochemical facilities, power generation, and marine applications, where high-temperature corrosion resistance and structural integrity are essential. They’re perfect for piping systems, heat exchangers, condensers, and tanks that come into contact with oxidizing and chloride-rich environments. Plus, these pipes are ideal for industrial, offshore, and pharmaceutical applications that demand a long service life, dependable performance, and resistance to scaling, pitting, and crevice corrosion, even under tough conditions.
