Home > Stainless Steel >Stainless Steel 316 and 316L EFW Pipes

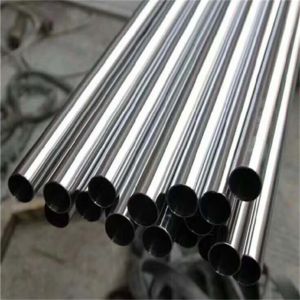

As a leading manufacturer and supplier in Addis Ababa, Ethiopia, Bereket Pipes is your trusted partner for industrial fluid systems. We specialize in providing high-quality Stainless Steel 316 and 316L EFW (Electric Fusion Welded) pipes that are built for resilience and performance. In a demanding industrial landscape, our products offer the durability and corrosion resistance needed for critical projects, supporting Ethiopia’s growing infrastructure and industrial sectors with reliable, locally-available solutions you can count on.
These grades are distinguished by their composition, which includes molybdenum for enhanced strength, particularly against chloride corrosion. Stainless Steel 316L offers a lower carbon content, minimizing the risk of sensitization during welding and making it ideal for fabrication. Both provide excellent toughness and high tensile strength, allowing them to perform reliably under high pressure and in challenging environments, ensuring a long service life with minimal maintenance for your systems.
| Specification | ASTM A358 / ASME SA358 |
| Specification | A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5 |
| Grades | 304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC. |
| Type | EFW, ELECTRIC FUSION WELDED |
| Outer Diameter Size | Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size) |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| STANDARD | WERKSTOFF NR. | UNS | BS | JIS | GOST | AFNOR | EN |
| SS 316 | 1.4401 | S31600 | 316S31 / 316S33 | SUS 316 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 | S31603 | 316S11 / 316S13 | SUS 316L | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| Grade | C | Mn | S | Cr | Mo | Si | P | Ni | N | |
| 316 | min. | – | – | – | 16.0 | 2.00 | – | – | 10.0 | – |
| max. | 0.08 | 2.00 | 0.03 | 18.0 | 3.00 | 0.75 | 0.045 | 14.0 | 0.10 | |
| 316L | min. | – | – | – | 16.0 | 2.00 | – | – | 10.0 | – |
| max. | 0.08 | 2.00 | 0.03 | 18.0 | 3.00 | 0.75 | 0.045 | 14.0 | 0.10 | |
| Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316 | 515 | 40% | 205 | 95 | 217 |
| 316L | 485 | 40% | 170 | 95 | 217 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 316 and 316L EFW Pipes from Bereket Pipes and Tubes guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.
| NPS Designator | Outside Diameter | Nominal Wall Thickness | ||||||||
| in. | mm | Schedule 5SA | Schedule 10SA | Schedule 40SA | Schedule 80SA | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 8 | 8.625 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.500 | 12.70 |
| 10 | 10.750 | 273.05 | 0.134 | 3.40 | 0.165 | 4.19 | 0.365 | 9.27 | 0.500B | 12.70B |
| 12 | 12.750 | 323.85 | 0.156 | 3.96 | 0.180 | 4.57 | 0.375B | 9.52B | 0.500B | 12.70B |
| 14 | 14.000 | 355.60 | 0.156 | 3.96 | 0.188B | 4.78B | … | … | … | … |
| 16 | 16.000 | 406.40 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 18 | 18.000 | 457.20 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 20 | 20.000 | 508.00 | 0.188 | 4.78 | 0.188B | 4.78B | … | … | … | … |
| 22 | 22.000 | 558.80 | 0.188 | 4.78 | 0.218B | 5.54B | … | … | … | … |
| 24 | 24.000 | 609.60 | 0.218 | 5.54 | 0.250 | 6.35 | … | … | … | … |
| 30 | 30.000 | 762.00 | 0.250 | 6.35 | 0.312 | 7.92 | … | … | … | |
| SS Pipes Grade | Tensile Strength, N/mm2 (min) | Yield Strength, N/mm2 (min) | Elongation, % (min) |
| 316 | 515 | 205 | 35 |
| 316L | 485 | 170 | 35 |
We offer custom sizes for Stainless Steel 316 and 316L EFW Pipes to meet your specific needs. Our dedicated team at Bereket Pipes and Tubes provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@bereketpipes.com.
These pipes are extensively utilized in chemical and petrochemical plants, oil and gas refineries, power plants, and heat exchangers, thanks to their remarkable corrosion resistance and high-temperature performance. They also find applications in marine settings, pharmaceuticals, food and beverage processing, and water treatment facilities, where hygiene and durability are paramount. Additionally, they are perfect for structural, hydraulic, and architectural projects that demand strength, precision, and long-lasting reliability. The combination of EFW construction, corrosion resistance, and mechanical strength makes these pipes an excellent choice for both industrial and commercial piping needs.
