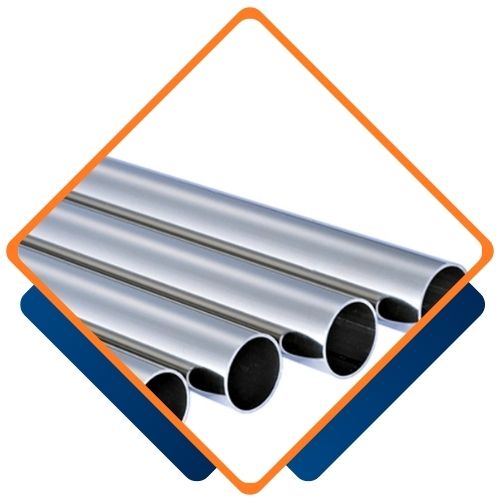

Home > Stainless Steel >Stainless Steel 310H EFW Pipes
Bereket Pipes stands as a trusted name in Addis Ababa, proudly serving as a leading manufacturer and supplier of high-grade industrial materials. We specialize in providing robust and reliable Stainless Steel 310H EFW Pipes, engineered to meet the rigorous demands of Ethiopia’s growing industrial sector. Our commitment is to deliver not just a product, but a solution that ensures longevity and peak performance for your most challenging projects, backed by our local expertise and dedication to quality that our clients have come to rely on.
The strength of these pipes lies in their sophisticated composition, which is rich in chromium and nickel, providing exceptional resistance to oxidation and corrosion. This is further enhanced by a higher carbon content, which gives the 310H grade its superior mechanical strength and creep resistance, especially when operating under sustained high temperatures. This carefully balanced alloy ensures the pipes maintain their integrity and performance even in the most thermally stressful environments, offering a dependable solution for critical applications.
| Specification | ASTM A358 / ASME SA358 |
| Specification | A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5 |
| Grades | 304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC. |
| Type | EFW, ELECTRIC FUSION WELDED |
| Outer Diameter Size | Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size) |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| STANDARD | UNS | WERKSTOFF NR. | JIS | BS | GOST | EN |
| SS 310H | S31009 | – | – | – | – |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 310H | 0.04 – 0.10 | 2.0 max | 1.00 max | 0.045 max | 0.030 max | 24.00 – 26.00 | – | 19.00 – 21.00 | 53.885 mi |
| Grade | Tensile Strength | Yield Strength | Elongation | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| SS 310H | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 | 95 | 217 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 310H EFW Pipes from Bereket Pipes and Tubes guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.
| NPS Designator | Outside Diameter | Nominal Wall Thickness | ||||||||
| in. | mm | Schedule 5SA | Schedule 10SA | Schedule 40SA | Schedule 80SA | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 8 | 8.625 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.500 | 12.70 |
| 10 | 10.750 | 273.05 | 0.134 | 3.40 | 0.165 | 4.19 | 0.365 | 9.27 | 0.500B | 12.70B |
| 12 | 12.750 | 323.85 | 0.156 | 3.96 | 0.180 | 4.57 | 0.375B | 9.52B | 0.500B | 12.70B |
| 14 | 14.000 | 355.60 | 0.156 | 3.96 | 0.188B | 4.78B | … | … | … | … |
| 16 | 16.000 | 406.40 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 18 | 18.000 | 457.20 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 20 | 20.000 | 508.00 | 0.188 | 4.78 | 0.188B | 4.78B | … | … | … | … |
| 22 | 22.000 | 558.80 | 0.188 | 4.78 | 0.218B | 5.54B | … | … | … | … |
| 24 | 24.000 | 609.60 | 0.218 | 5.54 | 0.250 | 6.35 | … | … | … | … |
| 30 | 30.000 | 762.00 | 0.250 | 6.35 | 0.312 | 7.92 | … | … | … | |
| SS Pipes Grade | Tensile Strength, N/mm2 (min) | Yield Strength, N/mm2 (min) | Elongation, % (min) |
| TP310H | OD < 17,1 mm – 515; | OD < 17,1 mm – 205; | 35 |
| OD > 17,1 mm – 485 | OD > 17,1 mm – 170 |
We offer custom sizes for Stainless Steel 310H EFW Pipes to meet your specific needs. Our dedicated team at Bereket Pipes and Tubes provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@bereketpipes.com.
You’ll find Stainless Steel 310H EFW Pipes commonly used in high-temperature equipment like furnaces, boilers, kilns, and incinerators, thanks to their exceptional strength and resistance to oxidation. They are also utilized in petrochemical and chemical plants, power generation systems, marine applications, and refinery units where durability and resistance to thermal cycling are essential. Furthermore, these pipes are suitable for structural and exhaust applications that demand reliable performance in harsh conditions. Their unique combination of heat resistance, corrosion protection, and EFW manufacturing makes them a top choice for challenging industrial operations.
