Home > Incoloy > Incoloy 800/800H/800HT Tubing
Nestled in the heart of Addis Ababa, Bereket Pipes has built a strong reputation as a trusted manufacturer and supplier dedicated to meeting Ethiopia’s growing industrial demands. We understand that the backbone of any major project is reliable, high-performance materials, which is why we take pride in offering superior Incoloy 800, 800H, and 800HT tubing. Our commitment goes beyond mere supply; we provide essential solutions that ensure the longevity, safety, and efficiency of the critical systems our clients depend on every day.
The strength of this tubing family lies in its specific composition, a careful balance of nickel, chromium, and iron fortified with titanium and aluminum. This alloy recipe grants it exceptional mechanical properties, including impressive tensile strength and outstanding creep-rupture strength, especially in the 800H and 800HT grades which are optimized for high-temperature service. This combination allows the material to maintain its integrity and resist deformation under extreme stress and heat, making it a robust choice for demanding environments.
Specifications ASTM B407, B514, B515 / ASME SB407, SB514, SB515
Dimensions ASTM, ASME and API
Size Range 15″NB – 150″NB
Outer Diameter 6.35 mm OD upto 254 mm OD in 0.6 TO 20 mm thickness.
Schedule SCH 10, SCH20, SCH30, SCH40, STD, SCH60, XS, SCH80, SCH120, SCH140, SCH160, XXS
Type Seamless / ERW / Welded / Fabricated / LSAW Pipes
Length Single Random, Double Random & Cut Length
Form Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tube
Grade 800 / 800H / 800HT UNS (N08800, N08810, N08811), DIN (1.4876, 1.4958, 1.4959)
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST | OR |
| Incoloy 800 | N08800 | 1.4876 | Z8NC32-21 | X10NiCrAlTi32-20 | NCF 800 | NA 15 | ЭИ670 | XH32T |
| Incoloy 800H | N08810 | 1.4958 | Z8NC32-21 | X10NiCrAlTi32-20 | NCF 800H | NA 15(H) | ЭИ670 | XH32T |
| Incoloy 800HT | N08811 | 1.4959 | – | X8NiCrAlTi32-21 | NCF 800HT | NA 15(HT) | ЭИ670 | XH32T |
| Element | Alloy 800 | Alloy 800H | Alloy 800HT |
| C | 0.10 max | 0.05 – 0.10 | 0.06 – 0.10 |
| Mn | 1.50 max | 1.50 max | 1.50 max |
| Si | 1.00 max | 1.00 max | 1.00 max |
| S | 0.015 max | 0.015 max | 0.015 max |
| Cu | 0.75 max | 0.75 max | 0.75 max |
| Fe | 39.50 min | 39.50 min | 39.50 min |
| Ni | 30.00 – 35.00 | 30.00 – 35.00 | 30.00 – 35.00 |
| Cr | 19.00 – 23.00 | 19.00 – 23.00 | 19.00 – 23.00 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Incoloy 800/800H/800HT Tubes from Bereket Pipes and Tubes ensures superior quality and durability, offering outstanding corrosion resistance and high strength. Our dedication to delivering exceptional service and reliable products guarantees customer satisfaction across a wide range of industrial applications. With our expertise in Incoloy solutions, you can trust us to provide a top-tier, customized piping solution that meets your specific requirements.
Bereket Pipes and Tubes, one of the largest suppliers of Incoloy 800/800H/800HT Tubing in the Addis Ababas, Ethiopia. Offers a wide range of high-quality pipes and tubes designed for various industrial applications. Their extensive inventory and dedication to exceptional service make them a trusted choice for Incoloy products in the region, delivering reliable solutions to meet diverse project requirements.
| Element | Incoloy Alloy 800/800H/800HT |
| Density | 7.94 g/cm3 |
| Melting Point | 1385 °C (2525 °F) |
| Tensile Strength | Psi – 75,000 , MPa – 520 |
| Yield Strength (0.2%Offset) | Psi – 30,000 , MPa – 205 |
| Elongation | 30 % |
Yes, we provide custom sizes for Incoloy 800/800H/800HT Tubes to meet your specific requirements. At Bereket Pipes and Tubes, our team is dedicated to delivering tailored solutions for all your piping and tubing needs. For more information, please contact us at sales@bereketpipes.com.

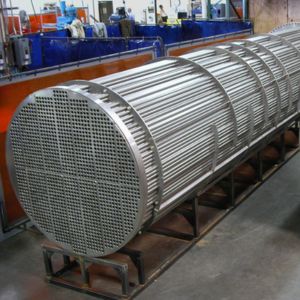

You’ll find **Incoloy 800/800H/800HT Tubing** widely utilized in chemical and petrochemical processing facilities, power generation plants, and oil and gas refineries. It’s commonly used in heat exchangers, furnace components, superheater and reheater tubing, and steam generation equipment. These tubes are also vital in nuclear power plants, industrial heating systems, and thermal processing equipment, where they must resist oxidation, scaling, and carburization at elevated temperatures.
